Bench Drill TC-BD 450

Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • 5 speed settings to suit all materials
    • For most common drill bit sizes thanks to robust ring gear chuck
    • Fast and precise drilling using the adjustable depth stop
    • Infinitely adjustable height of the drill table for variability
    • The drill table can also be rotated and tilted
    • Rubberized, three-arm capstan for exact application of pressure
    • Safe operation thanks to a folding chip guard
    • ON/OFF switch with zero-voltage release
    • Drilling spindle with ball bearings for long-lasting and easy use

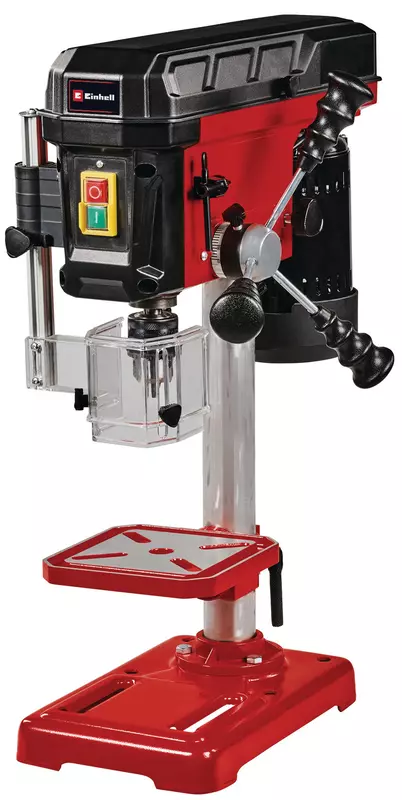

    einhell-classic-bench-drill-4520592-productimage-001
    Article description

    The Einhell bench drill TC-BD 450 is a practical, precise machine for special tasks: Due to the extra-large projection of 104 mm, large workpieces made of wood or metal can be reliably provided with pinpoint holes. With 450W power and 5-step speed adjustment from 600 to 2650 rpm, material-appropriate and precise drilling is possible. The bench drill can be used at very low and very high speeds and is excellently suited for hard materials e.g. metal and soft material e.g. wood. Exact drill holes possible thanks to adjustable depth stop. Maximum drilling depth of 50 mm. The bench drill has a robust sprocket chuck and B16 socket, which allows the use of Morse taper drills and common bits with diameters of 1.5 to 13 mm. The ball-bearing boring spindle ensures long-lasting and easy operation. The bench drill can be varied by continuously height-adjustable drill table. In addition, the drilling table can be rotated up to 90° and tilted up to 45°. The rubberised, three-armed rotating handle proves itself due to the favourable lever effect at exact contact pressure without the expenditure of force. The foldable chip guard and zero-voltage on/off switch prevent the machine from unintentionally startup after power failure.

    Technical details

    Drilling depth50 mm
    Max. drill bit diameter13 mm
    Max. speed2650 min^-1
    Min. drill bit diameter1.5 mm
    Min. speed600 min^-1
    Power S6450 W
    Product weight12.99 Kg
    Projection104 mm
    Quick-release drill chuckfalse
    Rotating range (drill table)90 °

    Precise drill holes

    Robust bench drill for every hobby workshop

    The powerful yet compact bench drill TC-BD 450 is the ideal addition to any home workshop. With 450 watts, pinpoint drilling in wood and metal is a breeze. Due to the 5-stage speed adjustment, it is possible to drill at a speed of 600 to 2650 rpm, adapted to the respective material. The bench drill enables precise drill holes and is an indispensable helper for all ambitious DIYers!

    Precise-drill-holes
    Suitable-for-all-common-drills

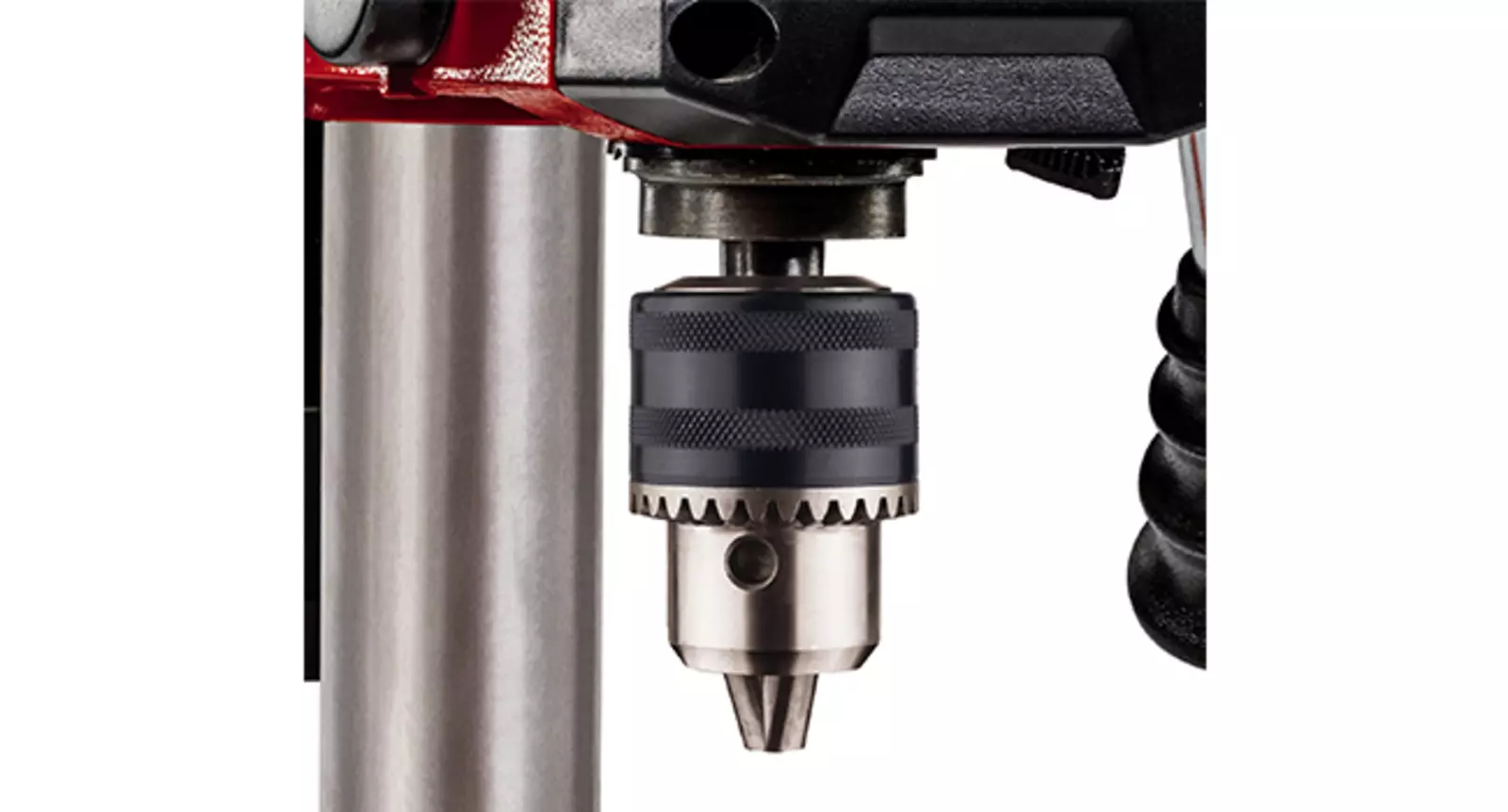

    Suitable for all common drills

    Thanks to the B16 adapter and the robust sprocket chuck, all common drills with a diameter between 1.5 and 13 mm can be inserted into the bench drill. The 5-stage speed control makes it possible to work in a material-appropriate manner.

    Exact-drill-holes-in-large-workpieces

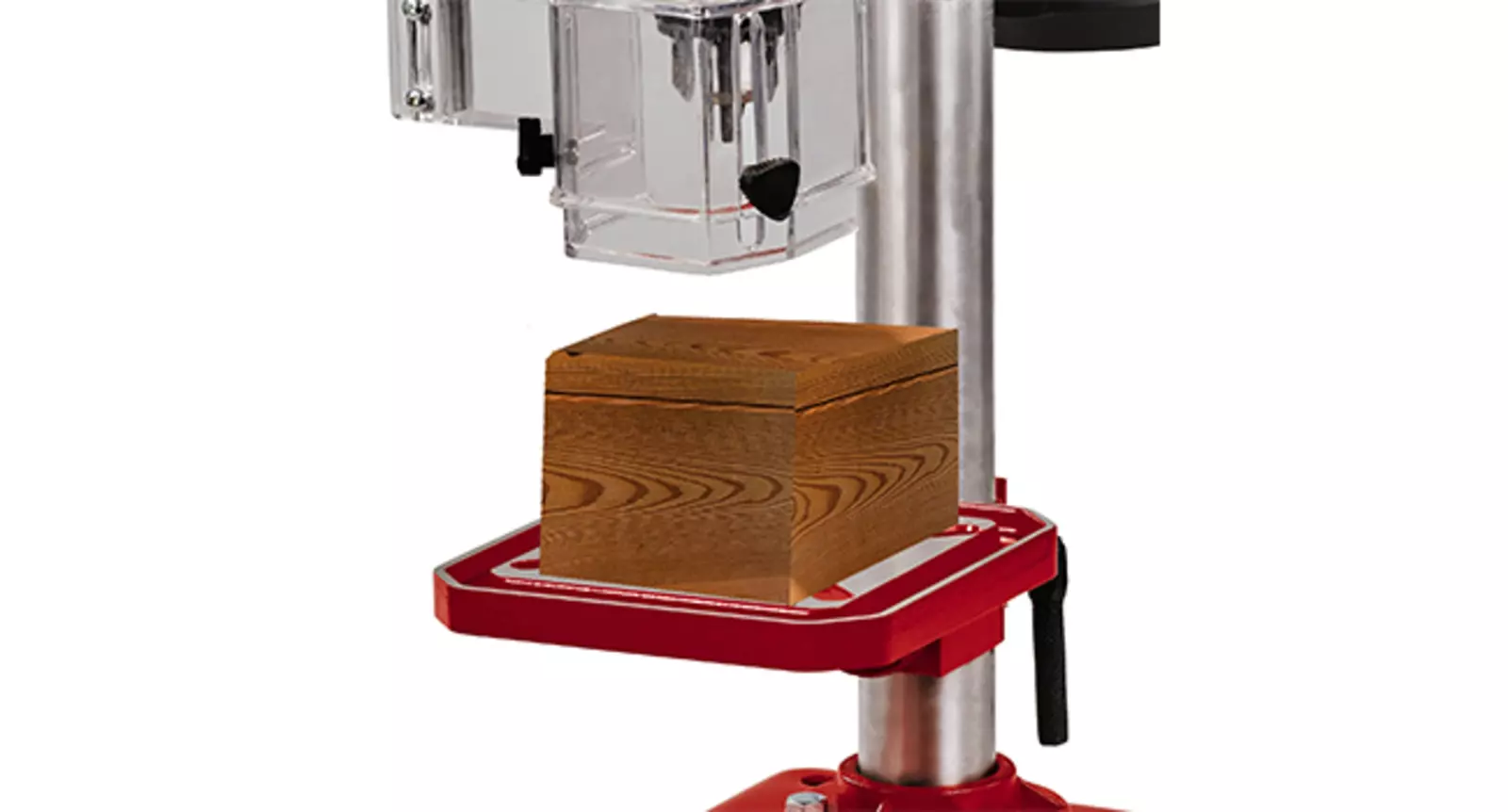

    Exact drill holes in large workpieces

    Due to the extra-large projection of 104 mm, even large workpieces can be placed on the drilling table. With the drill depth display and depth stop, the precisely desired drilling depth can be defined up to a maximum of 50 mm. In this way, more precise and faster drilling is also possible in series.

    Safe-and-controlled

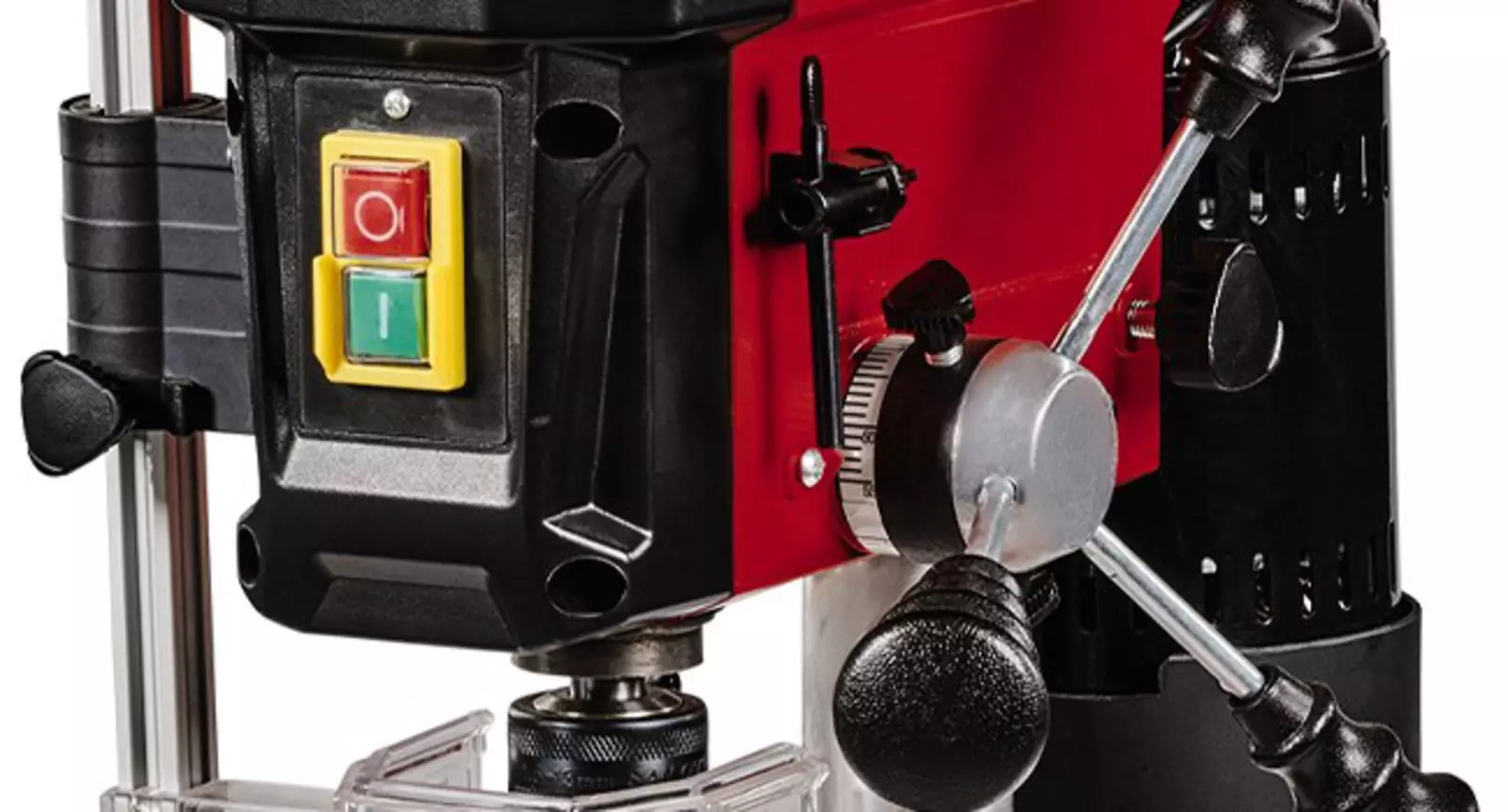

    Safe and controlled

    Precise drilling without effort is made possible by the favorable leverage of the three-armed, rubberised turnstile. During drilling operations, the chip guard ensures maximum safety for the user. The on/off switch is also equipped with a zero-voltage trip.

    Flexible-drilling-table

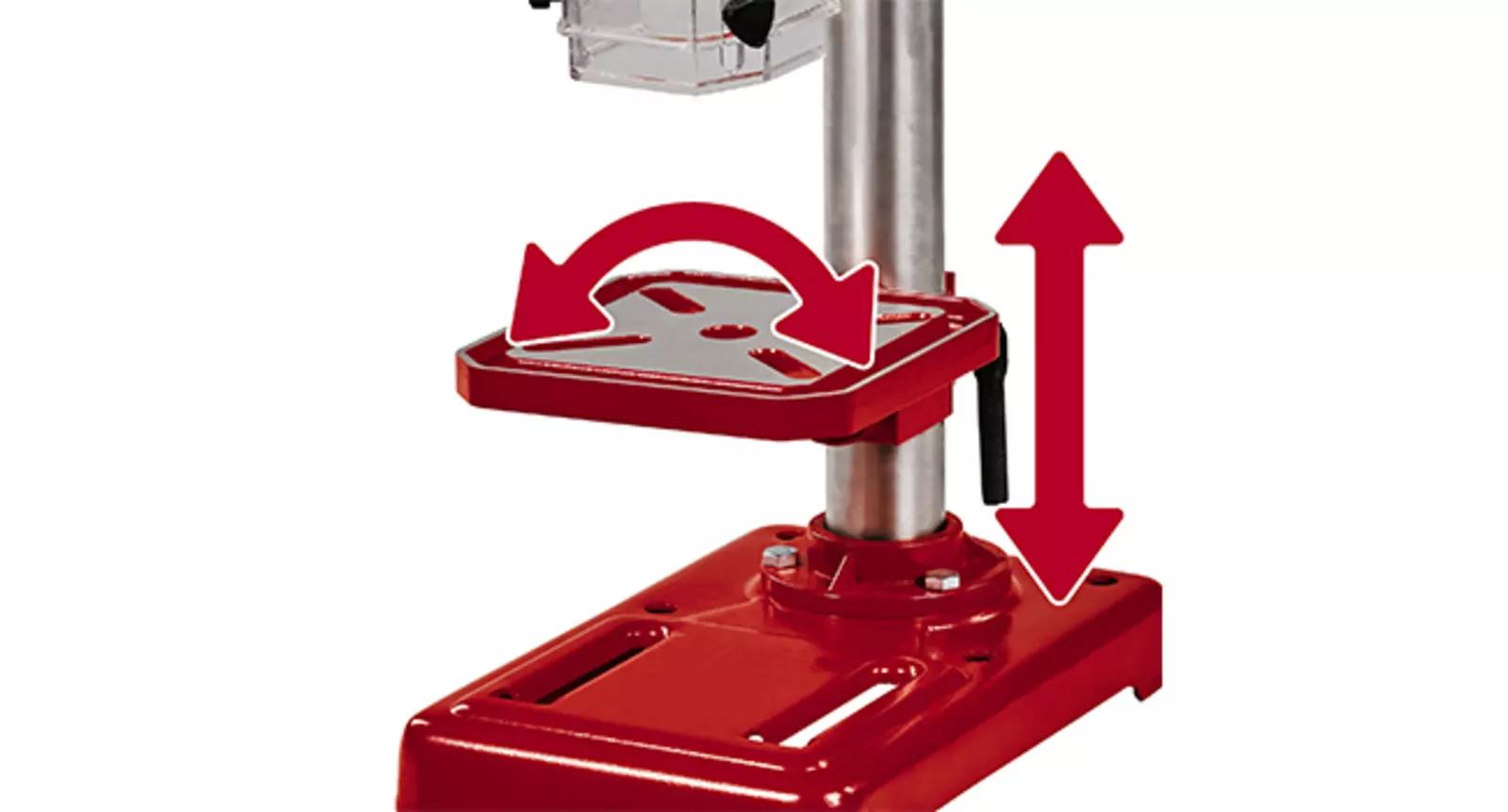

    Flexible drilling table

    The drilling table ensures full flexibility, is infinitely adjustable in height, rotatable up to 90° and tiltable up to 45°. The robust stainless steel base ensures the necessary stability of the compact bench drill.
