Air Compressor TE-AC 230/24/8

Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Oil lubrication contributes to long life
    • Oil level check through inspection window
    • The 24l tank has sufficient air reserves
    • Applications up to 8 bar can be set using the pressure regulator
    • Pressure gauge & quick-release coupling for regulated pressure
    • Big pressure gauge for unregulated pressure
    • Large wheels and a holding bar for an easy transport
    • Vibration-damped foot for standing securely
    • 10 years warranty against perforation corrosion of the tank
    • Non-return valve, safety valve
    • The drainage screw enables user-friendly maintenance

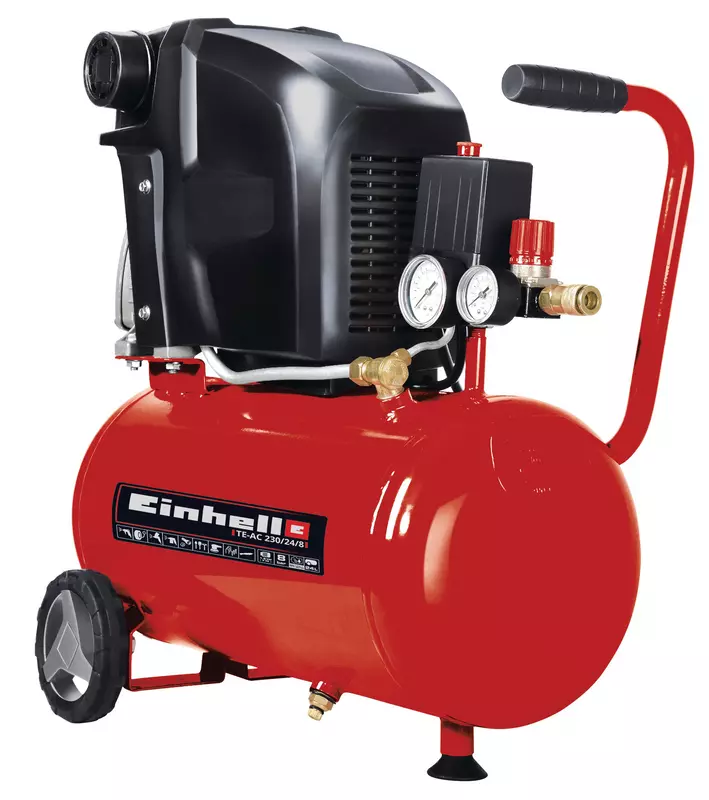

    einhell-expert-air-compressor-4010460-productimage-001
    Article description

    The Einhell TE-AC 230/24/8 compressor is an efficient and robust endurance runner for high requirements. The high-quality components and oil lubrication contribute to a very long life. The oil level can be conveniently checked through an inspection window. The working pressure of up to 8 bar can be set to many applications using the pressure regulator. Sufficient reserves of compressed air for many applications are held ready by the 24 liter tank. The regulated working pressure of the TE-AC 230/24/8 can be conveniently read off on the pressure gauge and it is culled at the quick-release coupling. A pressure gauge is available for checking the unregulated tank pressure. The practical drainage screw for letting off the condensate enables user-friendly maintenance. A non-return valve and a safety valve ensure the safe operation of the TE-AC 230/24/8, while the large wheels and holding bar enable easy transport. Complete with a 10-year guarantee against perforation corrosion of the solid, long-lasting tank.

    Technical details

    Max. operating pressure8 bar
    Motor speed2850 min^-1
    Number of cylinders1 pcs
    Output power 0 bar132 l/min
    Output power 4 bar102 l/min
    Output power 7 bar83 l/min
    Product weight22.9 Kg
    Pump speed2850 min^-1
    Sound pressure level (volume)74 dB (A)
    Suction power230 l/min
    Tank volume24 l
    full_width_image
    full_width_image
